User’s guide¶

Typical use¶

import pydicom
from conjuror.plans.plan_generator import PlanGenerator
from conjuror.plans.truebeam import OpenField

# create generator
base_plan = pydicom.dcmread(r"C:\path\to\base_plan_truebeam_millennium_mlc.dcm")
generator = PlanGenerator(base_plan, plan_name="New QA Plan", plan_label="New QA")

# add procedures
procedure = OpenField(x1=-5, x2=5, y1=-10, y2=110, defined_by_mlc=True, padding=10)
generator.add_procedure(procedure)

# export to file
generator.to_file("new_plan.dcm")

Creating a generator¶

There are two ways to create a Plan Generator:

Using a base plan file – Use this option when planning for a specific machine available at the institution. It provides the simplest workflow for importing the plan into Eclipse.
Selecting a machine type directly – Use this option when no specific machine is recommended, for example when sharing plans or creating plans that apply to multiple machines.

While plans created with the Plan Generator can, in principle, be loaded directly onto the treatment machine, it is recommended to first import them into Eclipse. Eclipse performs comprehensive plan validation, ensuring all tags conform to machine specifications. After validation, the plan can then be exported from Eclipse for delivery on the machine.

Use case 1: Using a base plan¶

To use the Plan Generator with a base plan, a base RT Plan file (or dataset) is required from the specific machine and institution for which the plans will be generated (see Creating a base plan). In most cases, the resulting plan will be imported into Eclipse and associated with an existing patient. Using a base plan as a template ensures that machine and patient identifiers remain consistent with the clinical database.

import pydicom
from conjuror.plans.plan_generator import PlanGenerator

# create generator from a RT plan dataset
base_plan_dataset = pydicom.dcmread(r"C:\path\to\base_plan_truebeam_millennium_mlc.dcm")
generator = PlanGenerator(base_plan_dataset, plan_name="New QA Plan", plan_label="New QA")

# or

# create generator from a RT plan file
base_plan_file = r"C:\path\to\base_plan_truebeam_millennium_mlc.dcm"
generator = PlanGenerator.from_rt_plan_file(base_plan_file, plan_name="New QA Plan", plan_label="New QA")

Creating a base plan¶

This is easy to do in Eclipse (and likely other TPSs) by creating/using a QA patient and creating a simple plan on the machine of interest. The plan should have at least 1 field and the field must contain MLCs. The MLCs don’t have to do anything; it doesn’t need to be dynamic plan. The point is that a plan like this, regardless of what the MLCs are doing, simply contains the MLC setup information. In list form, the plan should:

Be based on a QA/research patient in your R&V (no real patients)
Have a field with MLCs (static or dynamic)
Be set to the machine of interest
Set the tolerance table to the desired table

Once the plan is created and saved, export it to a DICOM file. This file will be used as the base plan for the generator.

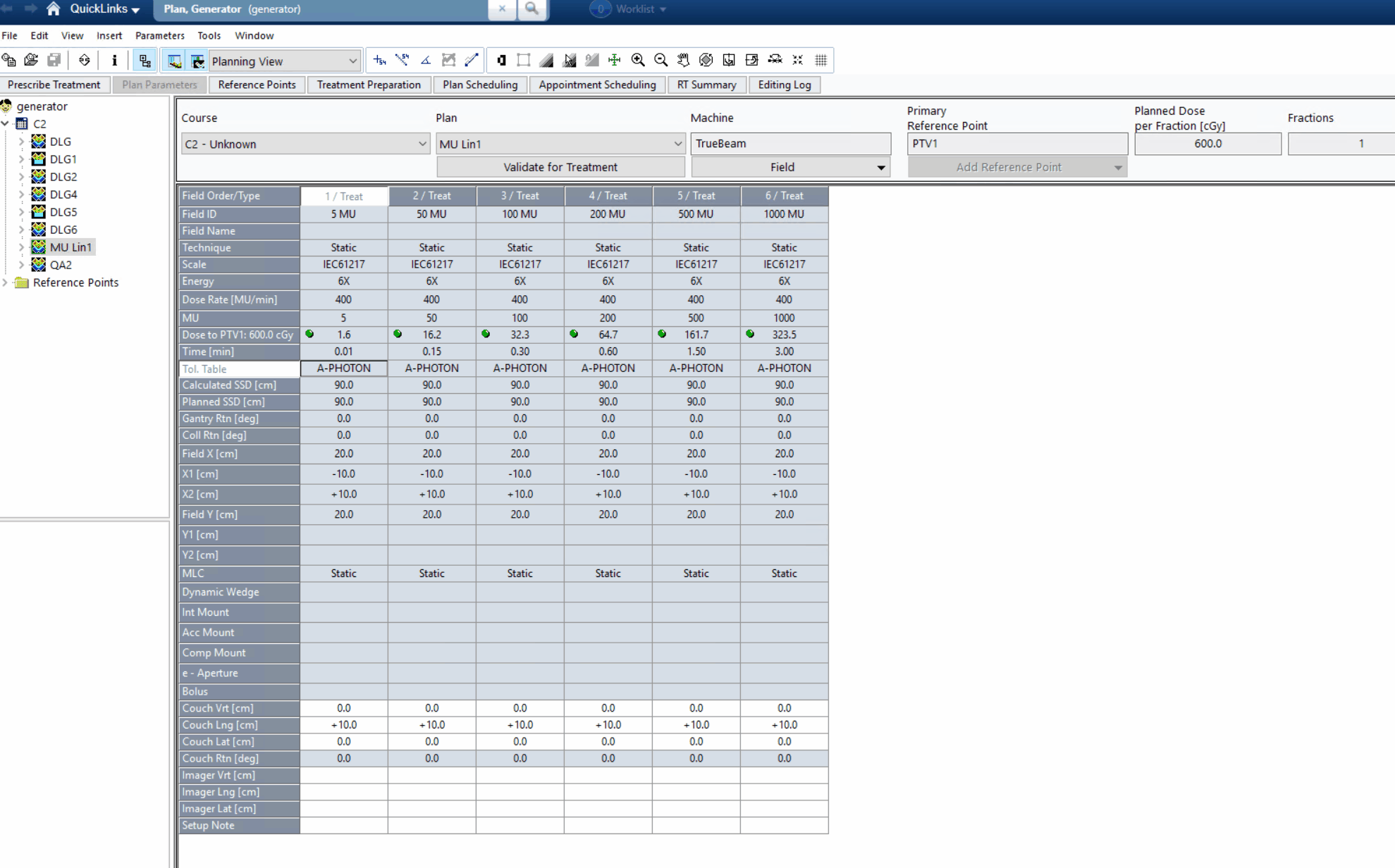

This entire process can be done in the Plan Parameters of Eclipse as shown below:

Use DICOM Import/Export to export the plan to a file.

Required tags from base plan¶

These are the DICOM tags in the base plan that the generator copies into the new plan.

Patient Name (0010, 0010) - Patient Name is used to link the new plan to this patient when importing.
Patient ID (0010, 0020) - Patient ID is used to link the new plan to this patient when importing.
Machine Name (300A, 00B2) - Machine Name is used to link the new plan to this machine when importing.
Tolerance Table Sequence (300A, 0046) - The first Tolerance Table in this sequence is copied to the new plan.
BeamSequence (300A, 00B0) - At least on beam in this sequence must contain MLC positions. This is required to identify the machine type.

Use case 2: Selecting a machine¶

Alternatively, you can create a Plan Generator by directly specifying the machine type. This approach is useful when you don’t have a base plan file available or when creating plans that don’t need to be associated with a specific machine in a clinical database. The machine type determines the MLC configuration and other machine-specific parameters.

from conjuror.plans.plan_generator import PlanGenerator
from conjuror.plans.truebeam import TrueBeamMachine
from conjuror.plans.halcyon import HalcyonMachine

# create generator for a TrueBeam machine
machine = TrueBeamMachine(mlc_is_hd=False)
generator = PlanGenerator.from_machine(
    machine,
    machine_name="TrueBeam",
    plan_name="New QA Plan",
    plan_label="New QA",
    patient_name="QA Patient",
    patient_id="QA001"
)

# or create generator for a Halcyon machine
halcyon_machine = HalcyonMachine()
generator = PlanGenerator.from_machine(
    halcyon_machine,
    machine_name="Halcyon",
    plan_name="New QA Plan",
    plan_label="New QA",
    patient_name="QA Patient",
    patient_id="QA001"
)

Adding procedures¶

Once the plan generator has been created, QA procedures can be added to the plan. The generator is responsible for adding machine information to each beam and updating the RT Fraction Scheme Module.

procedure = OpenField(x1=-5, x2=5, y1=-10, y2=110, defined_by_mlc=True, padding=10)
generator.add_procedure(procedure)

Pre-defined procedures¶

The plan generator comes with pre-defined procedures for typical QA tests (Picket-Fence, Open field, etc). For a comprehensive list of available procedures use the list_procedure method:

generator.list_procedures()

Advanced features¶

Customize machine parameters¶

The Plan Generator accounts for specific machine parameters — such as maximum gantry speed and maximum MLC speed — that define the physical limits of the target treatment machine. These parameters are immutable properties of the machine and are used when creating certain procedures, such as MLC speed tests.

By default, most machines use a set of standard parameter values. However, when necessary, it is possible to define custom machine specifications to reflect site-specific configurations or non-standard equipment. There are two supported methods for creating custom machine specifications:

Take default machine specs and replace one or more parameters.

from conjuror.plans.plan_generator import PlanGenerator
from conjuror.plans.truebeam import DEFAULT_SPECS_TB
specs = DEFAULT_SPECS_TB.replace(max_gantry_speed=4.8, max_mlc_speed=20)
generator = PlanGenerator(..., machine_specs=specs)

Create new machine specs via MachineSpecs

from conjuror.plans.plan_generator import PlanGenerator, MachineSpecs
specs = MachineSpecs(
   max_gantry_speed=4.8,
   max_mlc_position=200,
   max_mlc_overtravel=100,
   max_mlc_speed = 20)
generator = PlanGenerator(..., machine_specs=specs)

Create custom procedures¶

Custom procedures can be created by extending the QAProcedure abstract class in the appropriate machine module. When computing a custom procedure, a target machine must be specified — for example, when implementing a procedure to create a circle, the MLC leaf side boundaries need to be known. To simplify procedure creation without relying on a base plan, you can instantiate a Machine class and then pass it to the compute method as an argument.

from pydantic import Field
from conjuror.plans.truebeam import QAProcedure, TrueBeamMachine

class CircleProcedure(QAProcedure):
    """Create a circular MLC aperture."""

    radius: float = Field(
        title="Radius",
        description="The radius of the circle.",
        json_schema_extra={"units": "mm"},
    )

    def compute(self, machine):
        # business logic
        pass

    def plot(self):
        # business logic
        pass

def test_circle():
    machine = TrueBeamMachine(mlc_is_hd=False)
    circle = CircleProcedure(radius=5.0)
    circle.compute(machine)  # This step is also done automatically in add_procedure
    circle.plot()

API¶

Core classes¶

class conjuror.plans.plan_generator.PlanGenerator(base_plan: Dataset, plan_label: str, plan_name: str, patient_name: str | None = None, patient_id: str | None = None, machine_specs: MachineSpecs = None)[source]¶

A tool for generating new QA RTPlan files based on an initial base RTPlan file.

Parameters¶

base_planDataset: The RTPLAN dataset to base the new plan off of. The plan must already have MLC positions.
plan_labelstr: The label of the new plan.
plan_namestr: The name of the new plan.
patient_namestr, optional: The name of the patient. If not provided, it will be taken from the RTPLAN file.
patient_idstr, optional: The ID of the patient. If not provided, it will be taken from the RTPLAN file.
machine_specsMachineSpecs: The specs of the machine

class conjuror.plans.machine.MachineSpecs(max_gantry_speed: float, max_mlc_position: float, max_mlc_overtravel: float, max_mlc_speed: float)[source]¶

This class is a dataclass holding machine specs

Parameters¶

max_gantry_speedfloat: The maximum gantry speed in deg/sec
max_mlc_positionfloat: The max mlc position in mm
max_mlc_overtravelfloat: The maximum distance in mm the MLC leaves can overtravel from each other as well as the jaw size (for tail exposure protection).
max_mlc_speedfloat: The maximum speed of the MLC leaves in mm/s.

Base classes¶

class conjuror.plans.machine.MachineBase[source]¶: This is a base class that represents a generic machine (TrueBeam or Halcyon)

pydantic model conjuror.plans.plan_generator.QAProcedureBase[source]¶

Bases: BaseModel, Generic[TMachine], ABC

An abstract base class for generic QA procedures.

Create a new model by parsing and validating input data from keyword arguments.

Raises [ValidationError][pydantic_core.ValidationError] if the input data cannot be validated to form a valid model.

self is explicitly positional-only to allow self as a field name.

Fields:

beams (list[conjuror.plans.beam.Beam[conjuror.plans.machine.TMachine]])

field beams: Annotated[list[Beam[TMachine]], SkipJsonSchema()] [Optional]¶

class conjuror.plans.beam.Beam(beam_limiting_device_sequence: Sequence, beam_name: str, energy: float, fluence_mode: FluenceMode, dose_rate: int, metersets: Sequence[float], gantry_angles: float | Sequence[float], coll_angle: float, beam_limiting_device_positions: dict[str, list], couch_vrt: float, couch_lat: float, couch_lng: float, couch_rot: float)[source]¶

Represents a DICOM beam dataset. Has methods for creating the dataset and adding control points.

Parameters¶

beam_limiting_device_sequenceDicomSequence: The beam_limiting_device_sequence as defined in the template plan.
beam_namestr: The name of the beam. Must be less than 16 characters.
energyfloat: The energy of the beam.
fluence_modeFluenceMode: The fluence mode of the beam.
dose_rateint: The dose rate of the beam.
metersetsSequence[float]: The meter sets for each control point.
gantry_anglesUnion[float, Sequence[float]]: The gantry angle(s) of the beam. If a single number, it’s assumed to be a static beam. If multiple numbers, it’s assumed to be a dynamic beam.
coll_anglefloat: The collimator angle.
beam_limiting_device_positionsdict[str, list]: The positions of the beam_limiting_device_positions for each control point, where key is the type of beam limiting device (e.g. “MLCX”) and the value contains the positions.
couch_vrtfloat: The couch vertical position.
couch_latfloat: The couch lateral position.
couch_lngfloat: The couch longitudinal position.
couch_rotfloat: The couch rotation.

Derived classes - TrueBeam¶

class conjuror.plans.truebeam.TrueBeamMachine(mlc_is_hd: bool, specs: MachineSpecs | None = None)[source]¶: A class that represents a TrueBeam machine.

class conjuror.plans.truebeam.QAProcedure(*, beams: ~typing.Annotated[list[~conjuror.plans.beam.Beam[~conjuror.plans.truebeam.TrueBeamMachine]], ~pydantic.json_schema.SkipJsonSchema()] = <factory>)[source]¶

Create a new model by parsing and validating input data from keyword arguments.

Raises [ValidationError][pydantic_core.ValidationError] if the input data cannot be validated to form a valid model.

self is explicitly positional-only to allow self as a field name.

class conjuror.plans.truebeam.Beam(mlc_is_hd: bool, beam_name: str, energy: float, fluence_mode: FluenceMode, dose_rate: int, metersets: Sequence[float], gantry_angles: float | Sequence[float], x1: float, x2: float, y1: float, y2: float, mlc_positions: list[list[float]], coll_angle: float, couch_vrt: float, couch_lat: float, couch_lng: float, couch_rot: float)[source]¶

A class that represents a TrueBeam beam.

Parameters¶

mlc_is_hdbool: Whether the MLC type is HD or Millennium
beam_namestr: The name of the beam. Must be less than 16 characters.
energyfloat: The energy of the beam.
fluence_modeFluenceMode: The fluence mode of the beam.
dose_rateint: The dose rate of the beam.
metersetsSequence[float]: The meter sets for each control point. The length must match the number of control points in mlc_positions.
gantry_anglesUnion[float, Sequence[float]]: The gantry angle(s) of the beam. If a single number, it’s assumed to be a static beam. If multiple numbers, it’s assumed to be a dynamic beam.
x1float: The left jaw position.
x2float: The right jaw position.
y1float: The bottom jaw position.
y2float: The top jaw position.
mlc_positionslist[list[float]]: The MLC positions for each control point. This is the x-position of each leaf for each control point.
coll_anglefloat: The collimator angle.
couch_vrtfloat: The couch vertical position.
couch_latfloat: The couch lateral position.
couch_lngfloat: The couch longitudinal position.
couch_rotfloat: The couch rotation.

Derived classes - Halcyon¶

class conjuror.plans.halcyon.HalcyonMachine(machine_specs: MachineSpecs | None = None)[source]¶: A class that represents a TrueBeam machine.

class conjuror.plans.halcyon.QAProcedure(*, beams: ~typing.Annotated[list[~conjuror.plans.beam.Beam[~conjuror.plans.halcyon.HalcyonMachine]], ~pydantic.json_schema.SkipJsonSchema()] = <factory>)[source]¶

Create a new model by parsing and validating input data from keyword arguments.

Raises [ValidationError][pydantic_core.ValidationError] if the input data cannot be validated to form a valid model.

self is explicitly positional-only to allow self as a field name.

class conjuror.plans.halcyon.Beam(beam_name: str, metersets: Sequence[float], gantry_angles: float | Sequence[float], distal_mlc_positions: list[list[float]], proximal_mlc_positions: list[list[float]], coll_angle: float, couch_vrt: float, couch_lat: float, couch_lng: float)[source]¶

A class that represents a Halcyon beam.

Parameters¶

beam_namestr: The name of the beam. Must be less than 16 characters.
metersetsSequence[float]: The meter sets for each control point. The length must match the number of control points in mlc_positions.
gantry_anglesUnion[float, Sequence[float]]: The gantry angle(s) of the beam. If a single number, it’s assumed to be a static beam. If multiple numbers, it’s assumed to be a dynamic beam.
distal_mlc_positionslist[list[float]]: The distal MLC positions for each control point. This is the x-position of each leaf for each control point.
proximal_mlc_positionslist[list[float]]: The proximal MLC positions for each control point. This is the x-position of each leaf for each control point.
coll_anglefloat: The collimator angle.
couch_vrtfloat: The couch vertical position.
couch_latfloat: The couch lateral position.
couch_lngfloat: The couch longitudinal position.
